Wire Size and Amp Ratings

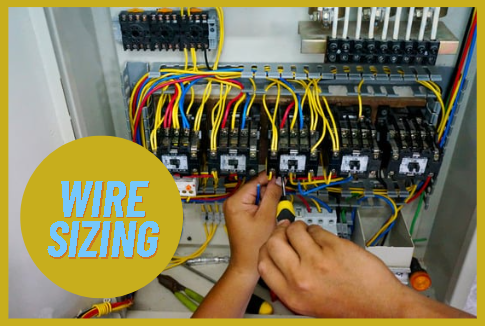

guiy fixing wires in a panel

This entry was published on December 14, 2023 by Kevin Pommells

The table below shows a general guideline for wire size and amp ratings.

Insulated Conductors and their ampacities

Wire Size
60°C (140°F)
75°C (167°F)
AWG (mm²) Copper Aluminum Copper Aluminum
700 (355) - - 460 375
600 (304) - - 420 340
500 (253) - - 380 310
400 (203) - - 355 270
350 (177) - - 310 250
300 (152) - - 285 230
250 kcmil (127) - - 255 205
1/0 (53.5) - - 150 120
2/0 (67.4) - - 175 135
3/0 (85.0) - - 200 155
4/0 (107.2) - - 230 180
1 (42.4) 110 85 130 100
2 (33.6) 95 75 115 90
3 (26.7) 85 65 100 75
4 (21.2) 70 55 85 65
6 (13.3) 55 40 65 50
8 (8.4) 40 30 50 40
10 (5.3) 30 25 30 25
12 (3.3) 20 15 20 15
14 (2.1) 15 - 15 -

Subscribe

Stay updated with our newsletter


Conclusion

Listen up – messing around with electrical wires is like playing with lightning, and trust me, you don't want to become a real-life sparkler. If you wire things up wrong, you might end up looking like a mad scientist's experiment gone wrong. For the sake of your well-being and your property (because no one wants a crispy home), do yourself a favor: chat with the National Electrical Code®, drop a line to your local building inspector, or call in the electrician cavalry. Stay zappy, but in a safe, controlled, non-electrocutiony way!
