Everything You Need to Know About 10/3 Wire
10/3 wire is a type of electrical wire commonly used for various applications. Its amp rating is important to ensure safe and efficient electrical installations. Understanding the capabilities and limitations of 10/3 wire is essential for proper electrical planning.

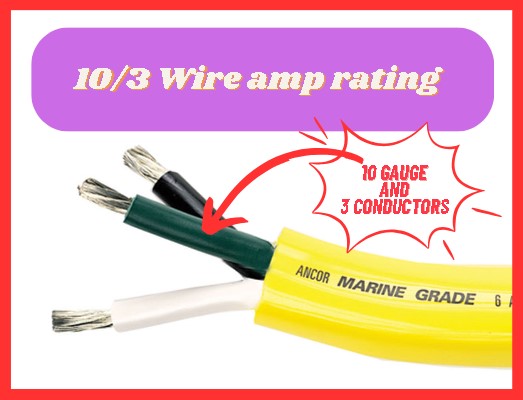

What is 10/3 Wire?
10/3 wire is a type of electrical cable that consists of three insulated copper conductors and a ground wire. It is typically used for installations that require a higher amperage capacity. The "10/3" designation refers to the gauge and number of conductors in the wire. It is commonly known as a "10-gauge" wire. 10/3 wire is typically used for 240-volt circuits.
Amp Rating of 10/3 Wire
The amp rating of 10/3 wire is 30 amps. This means that the wire can safely carry a maximum current of 30 amps. The amp rating is determined by factors such as the wire's gauge and insulation material. Exceeding the amp rating of the wire can lead to overheating and potential electrical hazards. It is important to always ensure that the wire's amp rating matches the requirements of the circuit it is being used for.
The most popular 10/3 wire i've seen on amazon is the Southwire 63948422 50' 10/3 with Ground Romex Brand SIMpull Residential Indoor Electrical Wire Type NM-B, Orange. It costs about $100 and is 50 feet long.
Using 10/3 Wire for a 30 Amp Circuit
10/3 wire is suitable for use in a 30 amp circuit. It can safely handle the current load of a 30 amp circuit without exceeding its amp rating. Using a wire with a lower amp rating for a 30 amp circuit can result in overheating and potential damage to the wire. It is important to consult local electrical codes and regulations to ensure compliance when using 10/3 wire for a 30 amp circuit.
Maximum Current Handling of 10/3 Wire
The maximum current that 10/3 wire can handle is 30 amps. This means that the wire is designed to carry a continuous current load of up to 30 amps without overheating. Factors such as ambient temperature and installation conditions can affect the wire's maximum current handling capacity. It is important to consider these factors when determining the appropriate wire size for a specific application. Exceeding the maximum current handling capacity of the wire can lead to overheating and potential fire hazards.
Residential Applications of 10/3 Wire
10/3 wire is commonly used in residential settings for various applications. It is often used for wiring outlets, switches, and lighting fixtures in homes. It is suitable for applications that require a higher amperage capacity, such as kitchen appliances. Residential applications of 10/3 wire may include electric ranges, dryers, and air conditioning units. It is important to follow local electrical codes and regulations when using 10/3 wire in residential applications.
Using 10/3 Wire for Electric Ranges and Dryers
10/3 wire can be used for electric ranges and dryers. These appliances typically require a higher amperage capacity, and 10/3 wire can safely handle the load. It is important to consult the manufacturer's specifications to determine the appropriate wire size for the specific appliance. Proper installation techniques, such as using appropriate connectors and securing the wire, are crucial for safe operation. It is recommended to hire a licensed electrician for installations involving electric ranges and dryers.
Subscribe
Stay updated with our newsletter
Commercial Uses of 10/3 Wire
10/3 wire is commonly used in commercial buildings for various applications. It is suitable for installations that require a higher amperage capacity, such as commercial kitchen equipment. Other commercial uses of 10/3 wire may include HVAC systems, industrial machinery, and lighting fixtures. It is important to comply with local electrical codes and regulations when using 10/3 wire in commercial settings. Installation should be performed by a qualified electrician to ensure safety and compliance.
Outdoor Installation of 10/3 Wire
10/3 wire can be installed outdoors, but certain precautions need to be taken. It is important to use outdoor-rated 10/3 wire that is designed to withstand exposure to moisture and other environmental factors. Proper conduit or protective covering should be used to protect the wire from physical damage. Outdoor installations should comply with local electrical codes and regulations. It is recommended to consult a licensed electrician for outdoor installations involving 10/3 wire.
Availability and Lengths of 10/3 Wire
10/3 wire is widely available in hardware stores and electrical supply outlets. It is sold in various lengths to accommodate different installation needs. Common lengths of 10/3 wire include 25 feet, 50 feet, and 100 feet. It is important to accurately measure and estimate the required length of wire for a specific installation. Excess wire should be properly stored and secured to prevent damage.
Using 10/3 Wire for 240V and 120V Circuits
10/3 wire can be used for both 240V and 120V circuits. For 240V circuits, two of the conductors in the 10/3 wire are used to carry the hot wires, while the third conductor is used for the neutral wire. For 120V circuits, one of the conductors in the 10/3 wire is used to carry the hot wire, while another conductor is used for the neutral wire. It is important to properly connect and label the wires to ensure correct and safe operation of the circuits. Consulting a licensed electrician is recommended for any installations involving 10/3 wire for 240V and 120V circuits.
Conclusion
10/3 wire is very popular in the electrical field. It is usually chosen for applications that require 30 amps. Please feel free to send us a message to help us make our website better with more accurate informatioin. We are all in this together. Thank you for reading.
